Plant Canopy Analyzer

The HD-G Series Plant Canopy Analyzer is an advanced canopy imaging and analysis system designed for accurate measurement of plant canopy structure, vegetation density, light transmittance, and photosynthetically active radiation (PAR). Equipped with high-precision fisheye lens imaging technology and CCD sensors, the system captures detailed canopy images and processes them using intelligent analysis software to provide reliable agricultural and ecological data.

The HD-G Series is ideal for crop monitoring, forestry research, orchard management, vegetation ecology studies, and environmental monitoring. With GPS positioning, cloud data transmission, and portable field operation, it is a powerful solution for modern precision agriculture and scientific plant analysis.

Key Features

• High-precision fisheye lens with CCD image sensor
• Wide-angle canopy imaging technology
• Real-time canopy image analysis software
• Accurate Leaf Area Index (LAI) measurement
• Photosynthetically Active Radiation (PAR) analysis
• GPS satellite positioning with latitude and longitude display
• Cloud agricultural data transmission support
• Portable handheld field operation design
• Intelligent canopy structure analysis system
• USB communication and optional wireless upload
• High-resolution image capture capability
• Ability to block unreasonable canopy areas during analysis

Benefits

• Improves accuracy in vegetation and crop analysis
• Supports precision agriculture and smart farming
• Provides reliable ecological and canopy structure data
• Helps optimize crop growth and productivity
• Enables advanced forestry and environmental monitoring
• Reduces manual analysis errors and workload
• Fast automated measurement and reporting
• Portable and suitable for field research applications
• Supports scientific studies and agricultural experiments

Applications

The HD-G Series Plant Canopy Analyzer is widely used in:

• Crop growth monitoring
• Variety breeding and plant research
• Orchard cultivation management
• Ecological restoration projects
• Vegetation ecology studies
• Forest ecological monitoring
• Agricultural universities and laboratories
• Environmental and climate research
• Smart agriculture and precision farming systems

Detectable Parameters

The system can measure and analyze:

• Leaf Area Index (LAI)
• Mean Leaf Tilt Angle (MTA)
• Agglomeration Index 1 (ACF)
• Agglomeration Index 2 (ACF)
• Tree crown width (DIFN)
• Canopy gap transmittance
• Sky scattered light transmittance
• Extinction coefficient of canopy
• Directional distribution of leaf area density
• Photosynthetically Active Radiation (PAR)
•


Technical Highlights

• Fisheye lens options: 150° and 180°
• PAR spectral range: 400nm–700nm
• High-resolution CCD imaging technology
• Real-time GPS satellite positioning
• USB communication interface
• SD card storage support
• Automatic and manual measurement modes
• Wireless data upload capability
• Windows 10 and above software compatibility
• Portable lightweight field-use design

Available Models

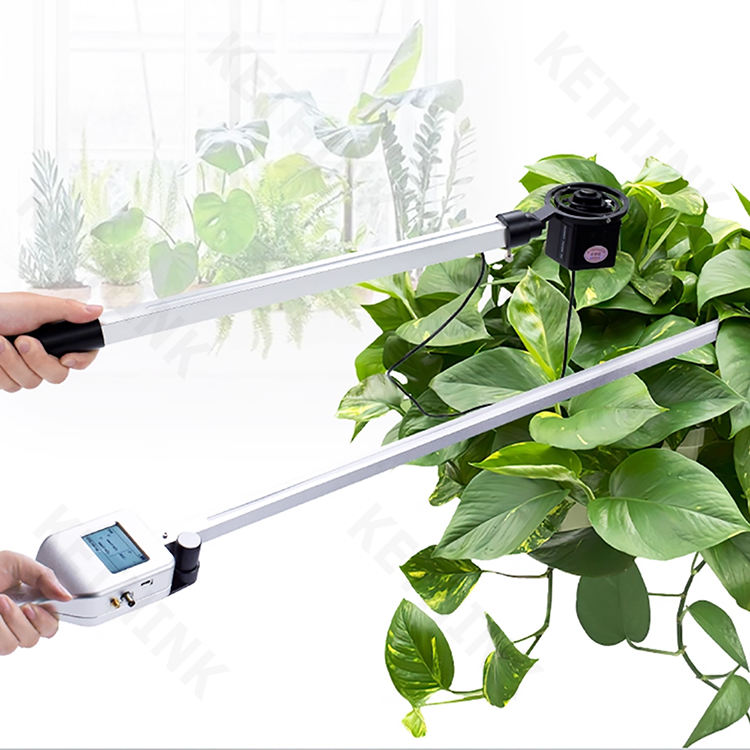

HD-G10

Functions:

• Photosynthetically Active Radiation (PAR) intensity measurement
• Leaf Area Index (LAI) analysis

Specifications:

• Probe Length: 100 cm
• Total Length: 128 cm
• Measurement Area: 1m²
• Data Storage: 16GB capacity
• Battery Life: Up to 20 hours

HD-G20

Features:

• 150° fisheye canopy imaging
• 6 canopy analysis indicators
• GPS positioning support
• Automated canopy analysis software

Specifications:

• Resolution: 768 × 494
• Sensor Range: 0–2000 μmol/m²·s

HD-G30

Advanced Features:

• 180° fisheye canopy imaging
• 10 advanced analysis indicators
• High-resolution environmental monitoring

Specifications:

• Resolution: 2592 × 1944
• Sensor Range: 0–3000 μmol/m²·s

Why Choose HD-G Series Plant Canopy Analyzer

• Professional-grade canopy analysis accuracy
• Advanced fisheye imaging technology
• Reliable real-time vegetation monitoring
• Intelligent software for automated calculations
• Portable and easy-to-use field operation
• Supports ecological, agricultural, and forestry research
• Cloud data transmission and GPS integration
• Suitable for scientific institutions and precision agriculture projects
• Trusted solution for modern plant canopy and environmental analysis
